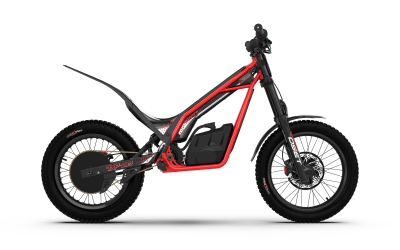

TXP-20 - Ready To Ride, Ready to Win

At Home Anywhere

The Journey of Champions

The OSET 20 electric bike has an impressive track record when it comes to competition wins. Over the years, it has consistently demonstrated its superiority in various events, solidifying its reputation as the go-to electric bike for young riders.

The all new TXP-20 is looking to extend the legacy of this bike for years to come, showing the competition how Trials bikes should be made.

IN STOCK NOW - NZ$6895

All New Motor

The OSET motor on the TXP-20 & TXP-24 uses a much higher specification sensor system, reading thousands of positions per revolution!

The result is a highly efficient and smooth power system:

Higher Performance & Power
Greater Efficiency
Better Cooling
Splined Sprocket Shaft
Removeable in 5 Minutes

OSET Designed Battery

OSET Lithium Battery packs combine more capacity & power with the latest tech available. Run time has increased to now power the bike continuously for up to three hours - that's a whole lot of distance you can cover.

8% energy increase
Robust internal design with close tolerance cell holders.
Reinforced case for maximum strength and impact resistance.
IP67 rated for superior water protection.
Single twist connector for easy connection.
Integrated carry-handle.
Battery state of charge LED indicator.
On board diagnostic port.

Brushless Controller

The controller is an incredibly powerful ‘brain’, capable of making many thousands of calculations per second, and ’controlling’ the response of the bike. The new brushless drive system is a huge step up.

Sin wave Field Oriented Control (FOC).
Active Performance Stabilisation (APS).
Safety features including constant status monitoring.
‘Plug-and-Play’ installation.
IP-67 for superior weather protection.
Alloy main casing with exposed fins for cooling

DESIGNED FOR EVERYWHERE

Trials

The TXP-20 has been designed from the ground up for competition Trials riding. Our dedication to every component can be seen throughout the bike.

Increased Power. More Control. Better Response.

Xplore

Fit the included seat and you have a second bike ready to ride out for exploring, take on muddy trails and relax on the custom designed padded seat unit.

Power on and take a load off!

Play

The TXP-20 is all about having fun! The extra power and lighter frame provides better rider agility opening up new and exciting places to ride.

Take it to the MAX!

Go out, Xplore & Play

Enjoy the sounds of nature whilst riding in the wild - Be a part of it on the TXP-20 and TXP-24 range of OSET bikes.

TXP 20 Specifications

Dimensions & Weights

Weight Limit (Rider)	60 kg
Wheelbase	1085 mm
Ground Clearance	255 mm
Handlebar Height	930 mm
Front Peg Height	305 mm
Weight (Trials)	40.7 kg
Weight (Xplore/Play)	42.4 kg
Seat Height (Trials)	525 mm
Seat Height (Xplore)	700 mm

Chassis

Frame	Steel tubular frame, replaceable alloy sump plate.
Swingarm	Steel with integrated chain tensioners and chain guide.
Suspension (Front)	125mm air sprung, with rebound & volume adjustment.
Suspension (Rear)	120mm air sprung, with rebound & volume adjustment.
Brakes	Dual piston hydraulic disc, 180mm rotors and front rotor guard.

Electrical

Controller	1400W controller with IP67 rated connectors.
Battery	Sealed, 50.4v nominal 20Ah lithium battery with LED status indicators.
Motor	OSET BLDC with position encoder.
Safety	Patented OSET magnetic kill switch with lanyard.
Adjustment	Integrated keypad, with adjustable speed, power and throttle response.
Throttle	Dual sensing twist type.
